The basic machine is free standing, floor mounted cabinet with a rubber mill belt for material handling. This equipment has (3) Oscillating Nozzles for optimum coverage. Used media is then pulled to the cyclone separator.As the media passes through the highly efficient cyclone separator where the fines such as dust and broken down media etc. are removed.

The control system includes all components required to operate the machine.

Standard Features:
• Oscillating Nozzles
• Cyclone Separator
• AR400 Barrelhead Liner and Cabinet Liners
• AR Rubber Lined Metal Front Door
• Mill Drive Motor with Current Sensor for Mill Jam Protection
• Hour Meter, Dial Timer
• Pneumatic Vertical Door

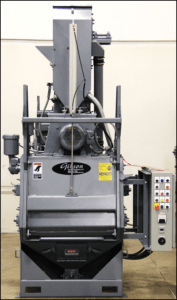

The basic machine is free standing, floor mounted cabinet with a rubber mill belt for material handling. This equipment has (1) direct drive blast wheel for greater optimum. Used media is gravity fed to the bucket elevator. The media then passes through the highly efficient single lip air-wash separator where the fines such as dust and broken down media etc. are removed. The abrasive flow to the blast wheels is controlled by pneumatically controlled low profile abrasive valves. The control system includes all components required to operate the machine.Gibson 3 cu. ft. Tumble Blast – Standard Features included in price:
• (1) 7.5 HP Direct Drive 12” Blast Wheel Assy.
• 400 lb. Capacity
• 5/16” Mill Belt Drain Holes
• ¼” Cabinet Construction with ¼” AR400 Roof
• 12” Single Lip Separator
• Bottom Screw Abrasive Return
• Abrasive Resistant Barrelhead Liner and Cabinet Liners
• Mill Drive Motor with Current Sensor for Mill Jam Protection
• Pneumatic Vertical Door
• AR Rubber Lined Metal Front Door
• Hour Meter, Push button Door, Amp Meter, Digital Blast Cycle Timer
• Variable Frequency Drive Mill, Mill Delay Timer**Price Includes Dust Collector Panel Circuitry**

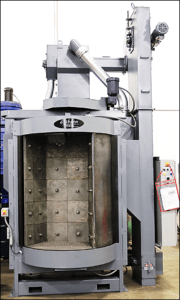

The basic machine is free-standing, floor mounted cabinet with (2) Chambers for Loading/Unloading while still performing a blast cycle. This allows for a constant and consistent work flow. Used media is driven by augers on the bottom of the cabinet to the bucket elevator. The media then passes through the rotary screen where large scale and unwanted materials are removed. The media then passes through the highly efficient single lip air-wash separator where the fines such as dust and broken down media etc. are removed. The abrasive flow to the blast wheels is controlled by pneumatically controlled low profile abrasive valves. The control system includes all components required to operate the machine.Gibson 24X60 Spinner Hanger – Standard Features included in Price:
• (Qty. 2) 10 HP Direct Drive Blast Wheel Assy.
• 14” Rotary Screen
• 20” Single Lip Separator
• Low Level Sensor, Shield, Indicator light
• Cabinet Top, Intake & Exhaust Lined with Manganese
• Cabinet Back Wall 1/2” Manganese (Without Liners)
• Cabinet Side Walls Rubber Lined
• Carousel Walls Fully Lined with Cast Liners
• Allen Bradley PLC Controls, Safety Bar Strip
• 5” Elevator Belt with Poly Buckets
• Hour Meter, Amp Meters, Digital Blast Cycle Timer
• Variable speed Carousel & Spinner Drive
Price Includes Dust Collector Panel Circuitry

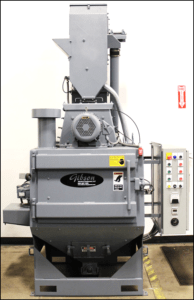

The basic machine is free standing, floor mounted cabinet with 36” Table for material handling. This equipment has (1) direct drive blast wheel for greater optimum. Used media is gravity fed to the bucket elevator. The media then passes through the highly efficient single lip air-wash separator where the fines such as dust and broken down media etc. are removed. The abrasive flow to the blast wheels is controlled by pneumatically controlled low profile abrasive valves. The control system includes all components required to operate the machine.Gibson 36” Table Blast – Standard Features included in price:
• (1) 7.5 Hp Direct Drive 12” Blast Wheel Assy. Mounted on Top
• Rubber Lined Cabinet and Door
• AR400 Cabinet Liners Left and Right side of Wheel
• AR Rubber Table Liner ½” Thick
• 12” Single Lip Separator
• V-Belting Elevator Belt with Metal Buckets
• Hour Meter, Digital Blast Cycle Timer, Amp Meter
**Price Includes Dust Collector Panel Circuitry**

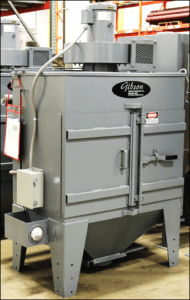

• Air to Cloth Ratio – 2:1
• 60 Square feet per filter
• MERV* 10 per ASHRAE 52.2-2007 – 98% efficient when treated
• Material – Standard Cellulex
• Typical Feet Per Minute – 4,000-5,000
• Typical Abrasive Consumption – .25% of the total horsepower in pounds per hour of blasting.Available Dust CFM
• 500
• 800
• 1200
• 1600
• 2000
