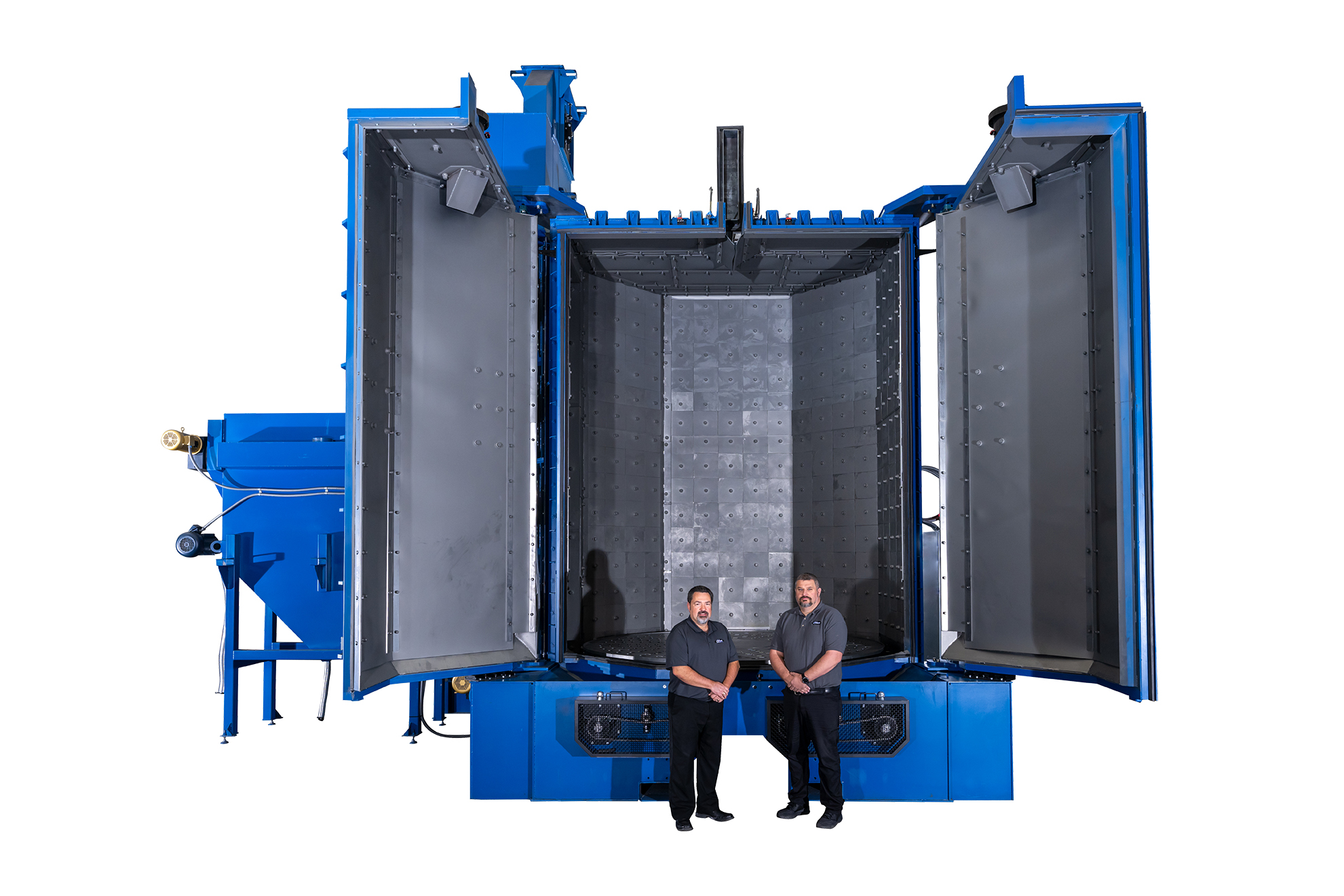

84″ XT Table, Table Blast System
Features:
- These machines use a powered turntable that rotates within the blast envelope to provide 360° exposure.
- The turntable can be swung in and out of the blast enclosure for easy loading and unloading.
- Turntables have abrasion-resistant liners.
- Some models feature an oscillating blast wheel to enhance blast coverage.
- Designed for overhead loading and unloading of heavy parts using a hoist or crane.
Benefits:
- Versatility and flexibility
- Suitable for parts ranging from 10 lb gears to heavy fabrications.
- Facilitate cleaning, peening, deburring, profiling, finishing, and other surface conditioning tasks.
- Provide efficient blasting of parts with consistent 360-degree coverage.
Product Details
| Work Load Capacity | 10,000 lb |
|---|---|
| Maximum Blast Envelope Capacity | 84 in Dia. x 60 in |
| Optimal Blast Envelope Capacity | 72 in Dia. x 66 in |
| Media Charge Capacity | 7,000 lb |
| Direct-Drive Blast Wheel (HP) | (2) 15 hp |
| Ventilation Requirement | 3,000 CFM |
| Available Options | Variable speed motors |
| Blast Cleaning Solutions for: | Variable speed motors |
| Air Wash Separator | 30 |
| Direct-Drive Blast Wheel (HP) | (2) 15 |
| Direct-Drive Blast Wheel - Optional Wheels (HP) | (3) 20 |
| Dust Collector CFM Required | 4,000 |
| Dust Collector Depth (in) | 64 |
| Dust Collector Height (in) | 173 |
| Dust Collector Width (in) | 52 |
| Electrical Requirement - Current (Table Blaster Only) | 27.3 |
| Electrical Requirement - Current (with Dust Collector) | 36.3 |
| Electrical Requirement - Frequency (Hz) | 60 |
| Electrical Requirement - Phase | 3 |
| Electrical Requirement - Voltage (V) | 460 |
| Initial Abrasive Fill (lb) | 7,000 |
| Low Abrasive Indicator | Standard |
| Noise level (dB) | 85 |
| Oscillating Blast Wheels | Optional |
| Pitless Design | Yes |
| Rotary Screen | Standard |
| Standard Machine Depth (in) | 195 |
| Standard Machine Height (in) | 238 |
| Standard Machine Weight (in) | 16,000 |
| Standard Machine Width (in) | 128 |
| Standard Table Liner | AR 400 |
| Standard Table Load Capacity (lb) | 10,000 |
| Table Blaster Depth, Cabinet Only (in) | 195 |
