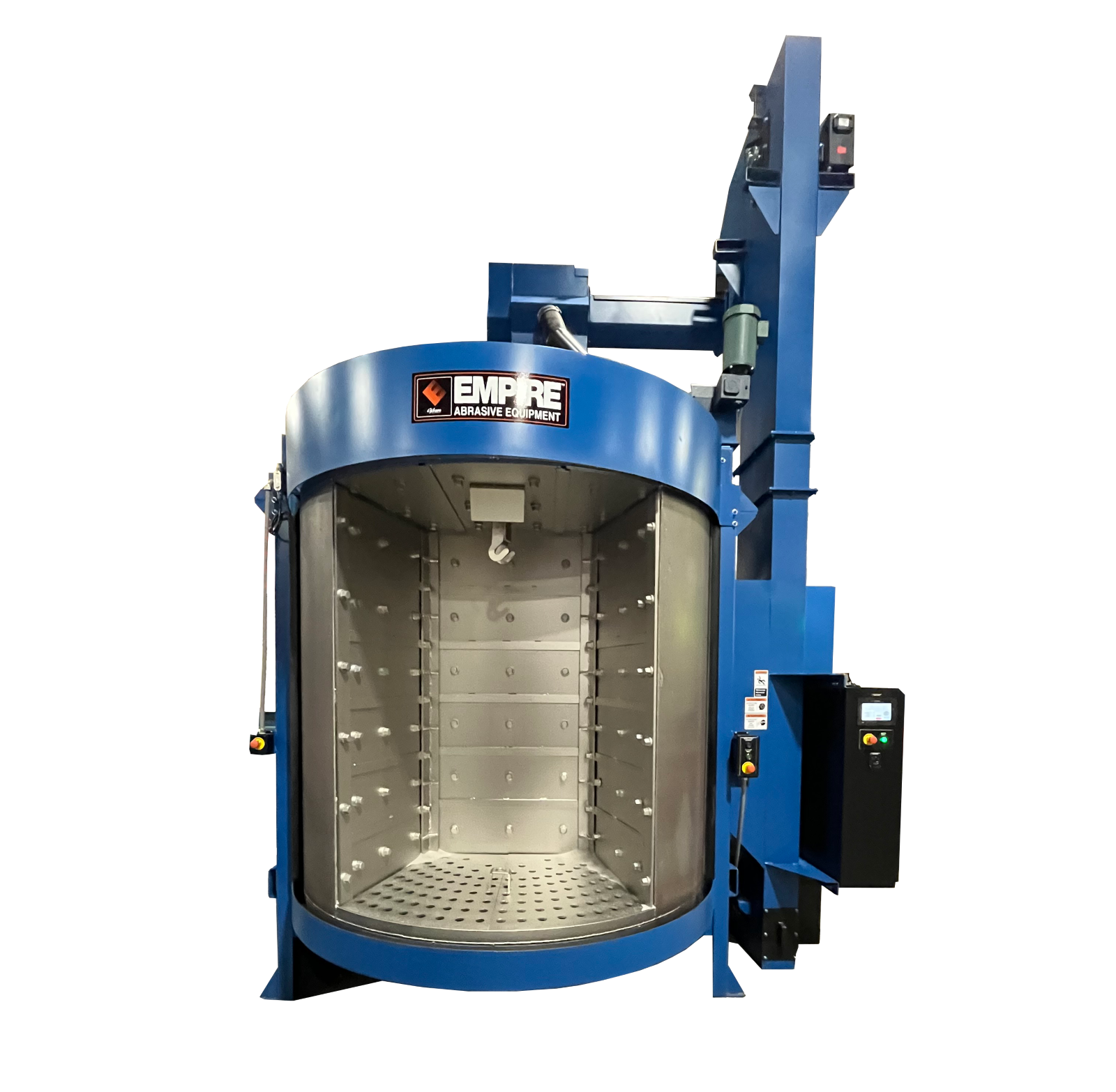

Model 24×60 SH, Spinner Hanger Blast System
Features:
- These systems have two work chambers mounted on an indexing turntable. One chamber is blasted while the other is open for loading and unloading.
- Hangers rotate within the blast chamber to ensure uniform coverage.
- Include PLC programming, cast liners on chamber walls, and a safety bump bar strip.
- Options include a variable frequency drive for blast wheels, a rotary scalping screen, a safety light curtain, and abrasion-resistant liners.
- Hanger capacities range from 125 to 2,000 pounds.
Benefits:
- Allow for speed batch blasting of sensitive parts while also continuing to work during loading.
- Provide 360° workpiece coverage.
- Improve quality and efficiency in cleaning, peening, prepping and finishing of workpieces that can be mounted on hooks.
Product Details
| Work Load Capacity | 1,500 lb |
|---|---|
| Maximum Blast Envelope Capacity | 24 in Dia. x 60 in |
| Optimal Blast Envelope Capacity | 24 in Dia. x 48 in |
| Blast Chambers | Two |
| Media Charge Capacity | 2000 lb |
| Direct-Drive Blast Wheel (HP) | (2) 7.5 hp |
| Ventilation Requirement | 2,000 CFM |
| Blast Wheel Upgrade Options | Two-10 HP |
| Dust Collector CFM Required | 2,000 |
| Dust Collector Depth (in) | 36 |
| Dust Collector Height (in) | 127 |
| Dust Collector Width (in) | 50 |
| Electrical Requirement - Current (Spinner Hanger Only) | 23.3 |
| Electrical Requirement - Current (with Dust Collector) | 29.5 |
| Electrical Requirement - Frequency (Hz) | 60 |
| Electrical Requirement - Phase | 3 |
| Electrical Requirement - Voltage (V) | 460 |
| Hook Load Capacity (lb) | 1,500 |
| Initial Abrasive Fill (lb) | 2,000 |
| Low Abrasive Indicator | Standard |
| Maximum Blast Envelope Capacity (in) | 24 in Dia. x 60 |
| Media Charge Capacity (Steel) (lb) | 2,000 |
| Noise level (dB) | 85 |
| Optimal Blast Area Diameter x Height (in) | 24 x 48 |
| Optimal Blast Envelope Capacity (in) | 24 in Dia. x 48 |
| Pitless Design | Yes |
| Rotary Screen | Standard |
| Single Air Wash Separator (in) | 20 |
| Spinner Hanger Depth, Cabinet Only (in) | 79 |
| Spinner Hanger Height, Cabinet Only (in) | 160 |
| Spinner Hanger Width, Cabinet Only (in) | 96 |
| Standard Hanger Capacity (lb) | 1,500 |
| Standard Machine Depth (in) | 79 |
| Standard Machine Height (in) | 161 |
| Standard Machine Weight (in) | 8,000 |
| Standard Machine Width (in) | 96 |
| Ventilation Requirement (CFM) | 2,000 |
| Standard Features | Solid construction |
| Available Options | Variable frequency drive for blast wheels |
| Blast Cleaning Solutions for: | Ferrous and non-ferrous castings |
