Table Blasters

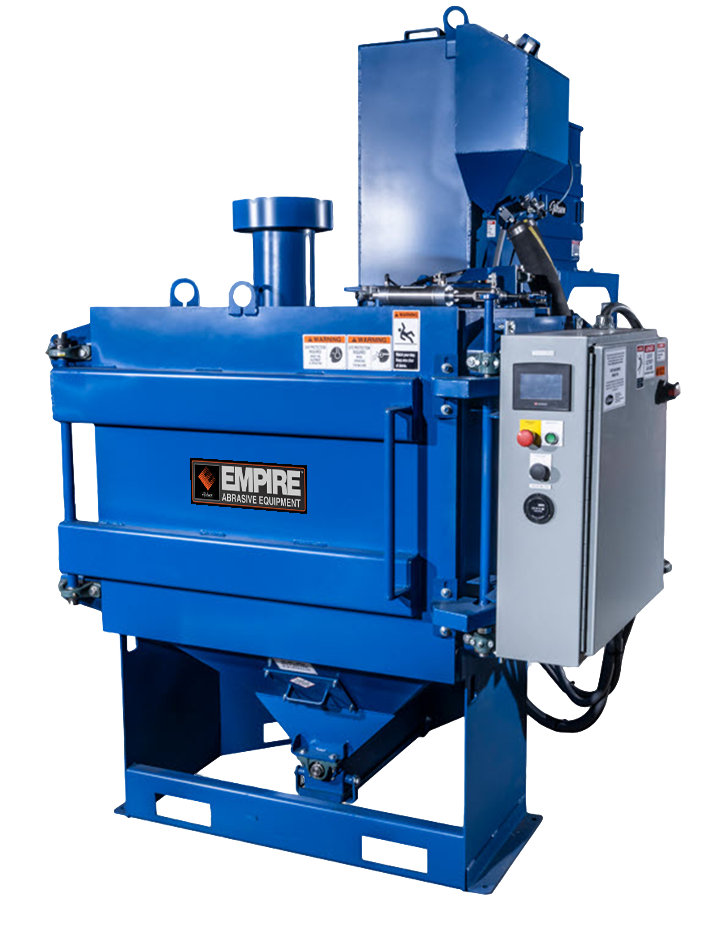

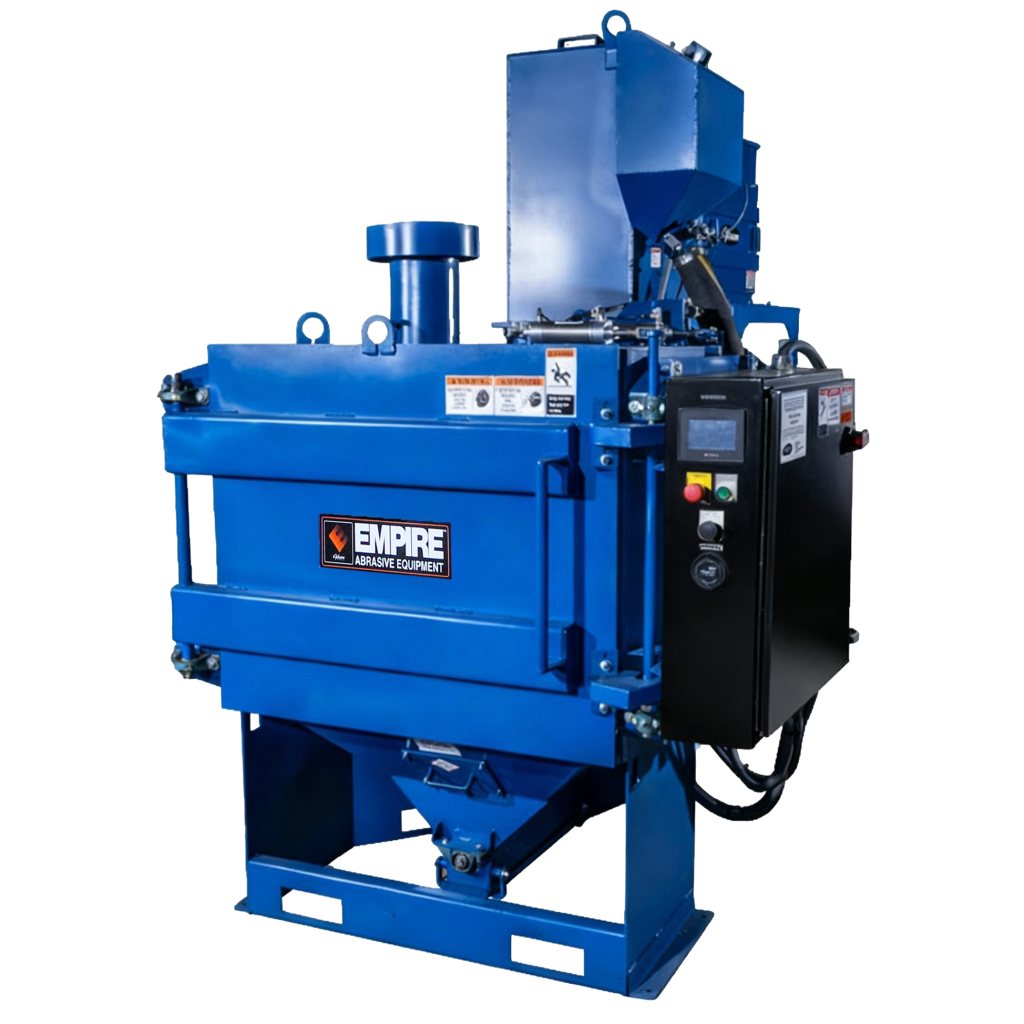

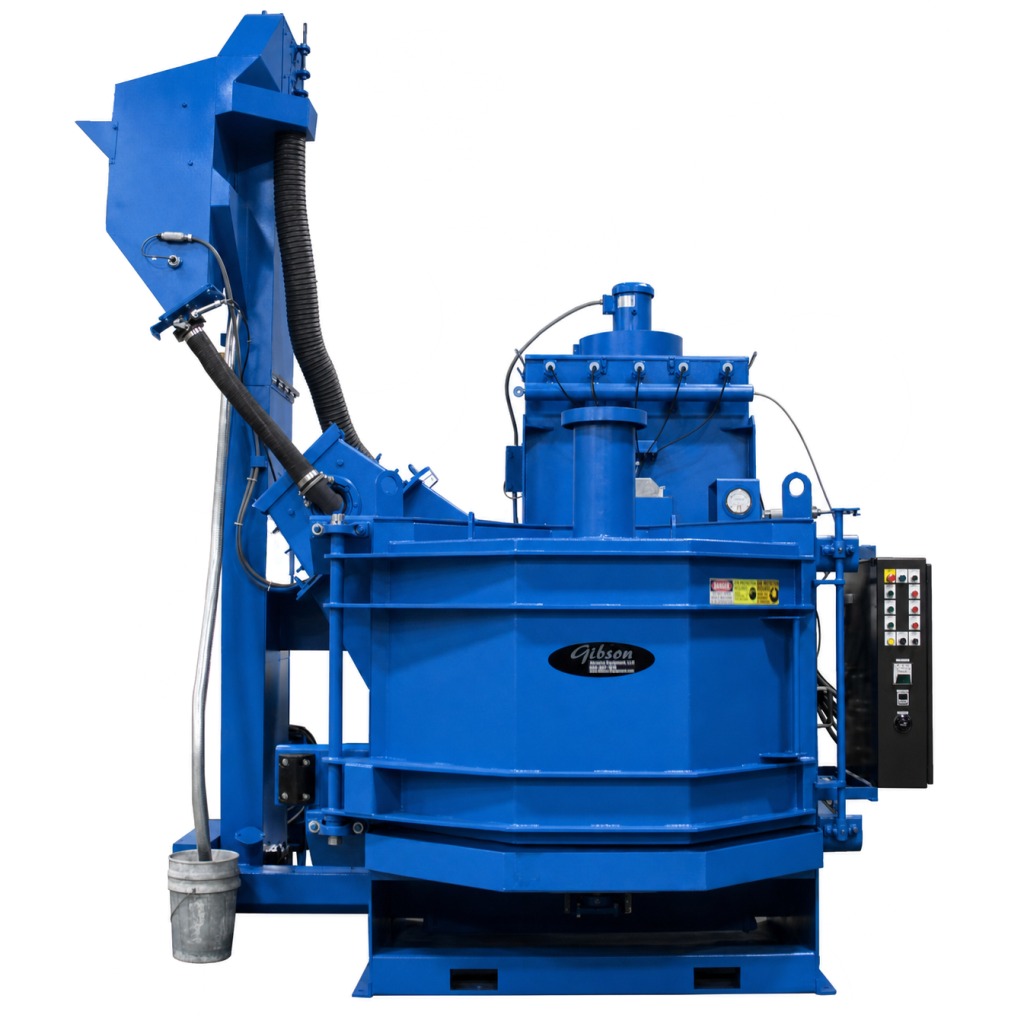

Gibson Table Blaster
Gibson Table Blaster XT

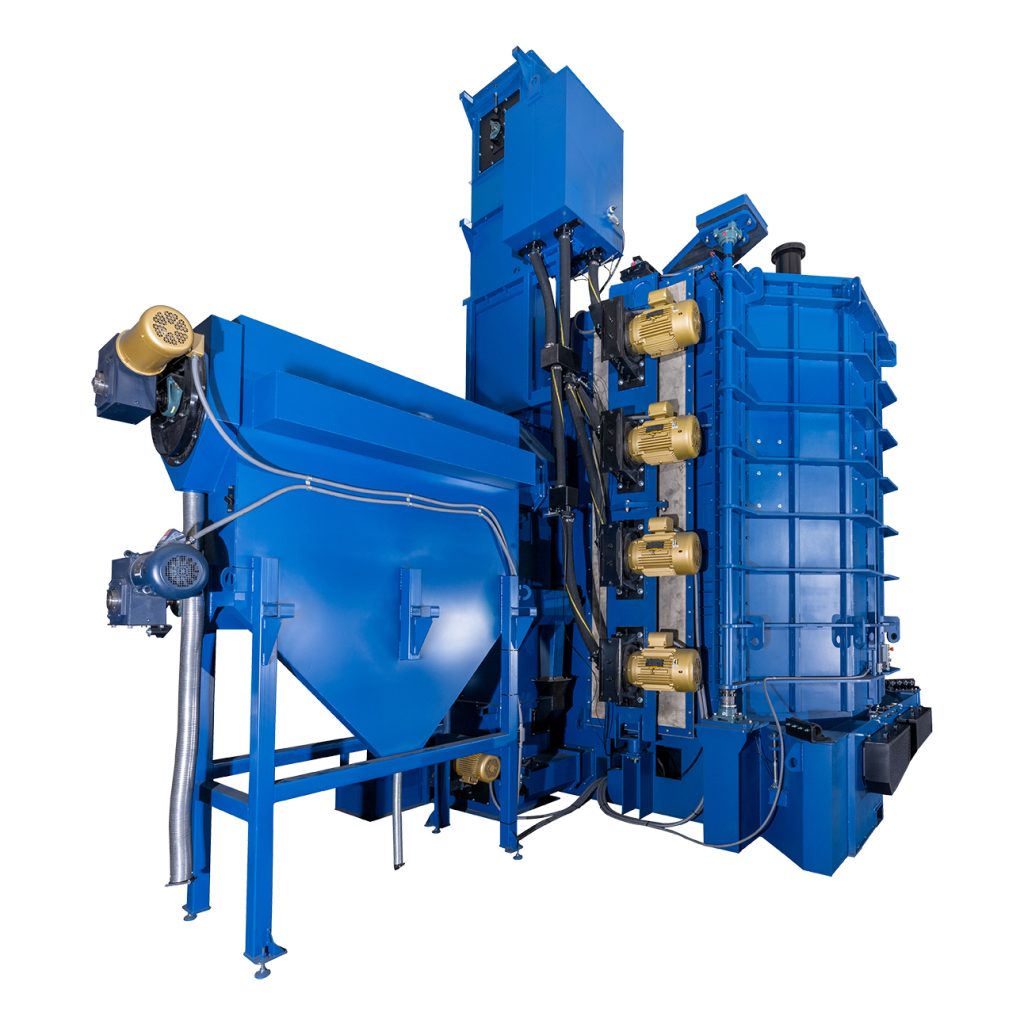

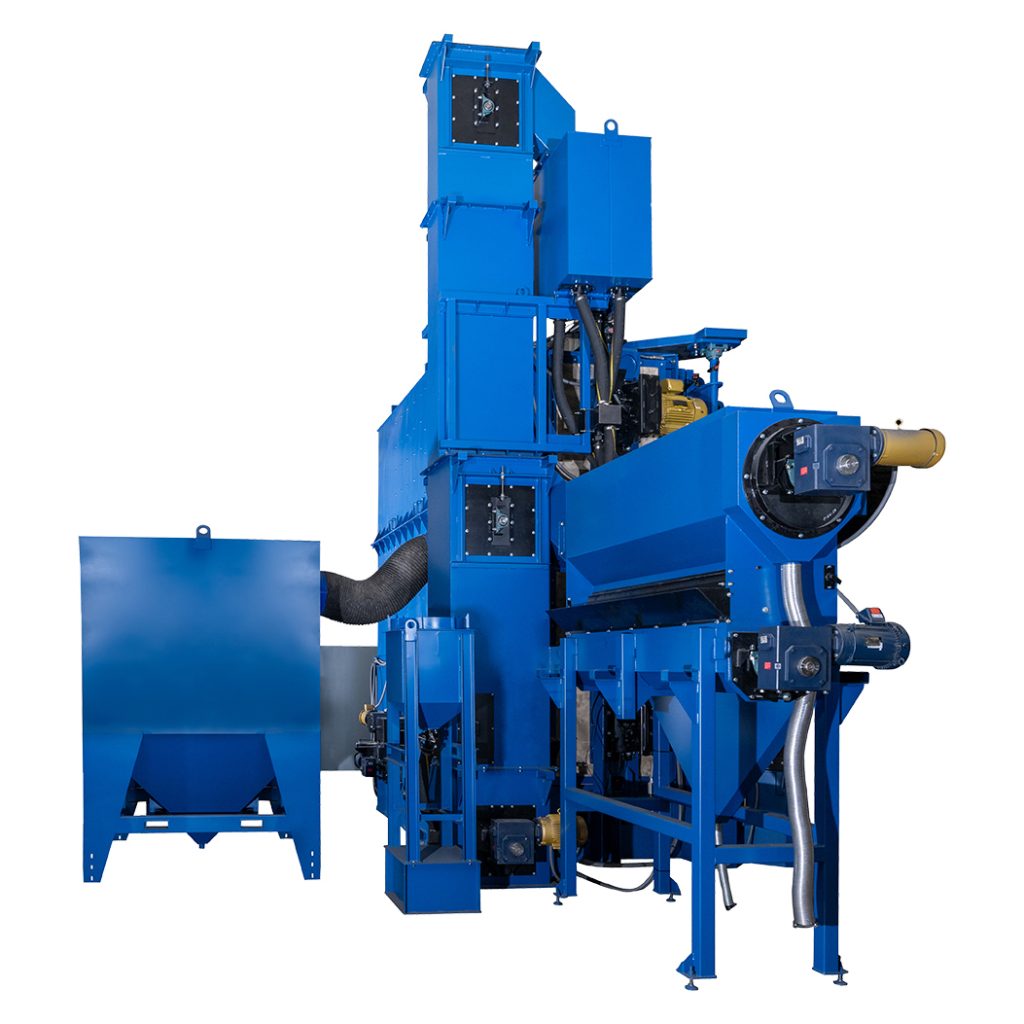

Table Blaster System - large - back

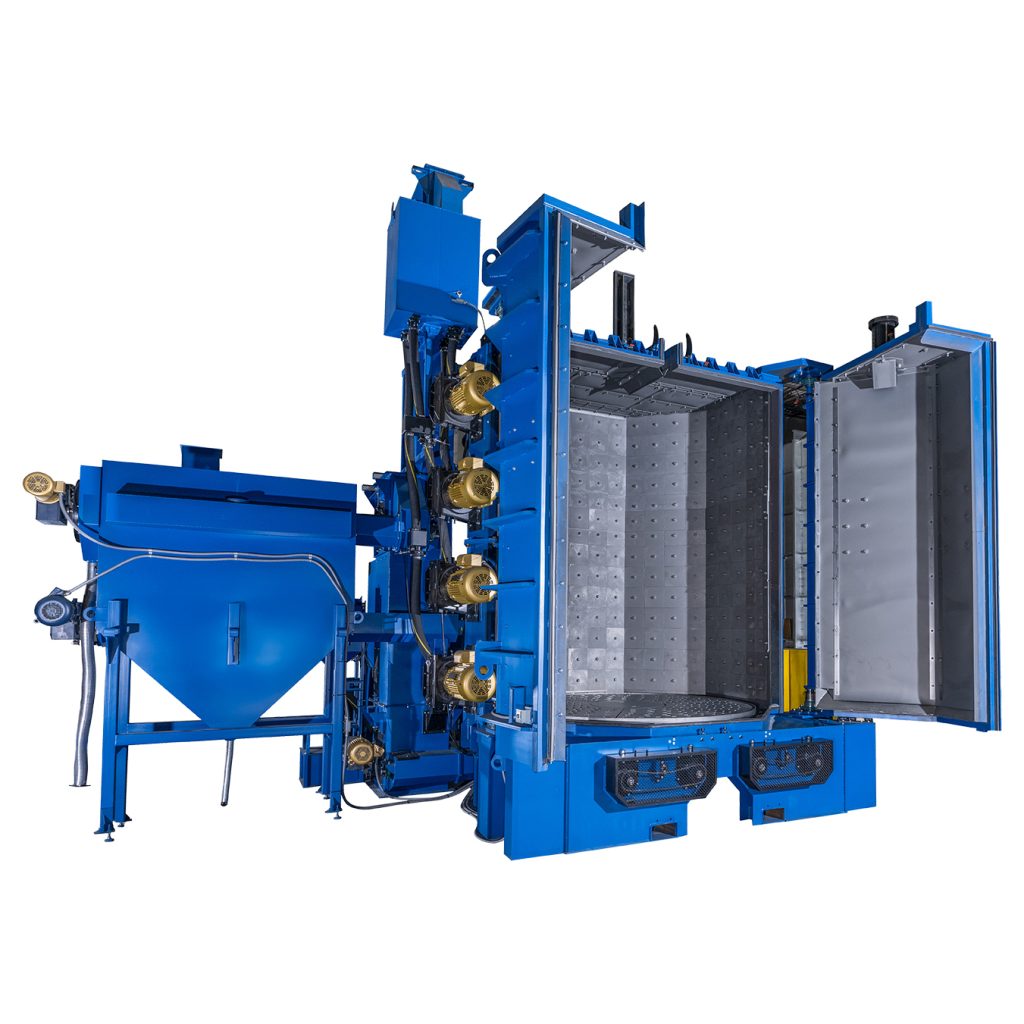

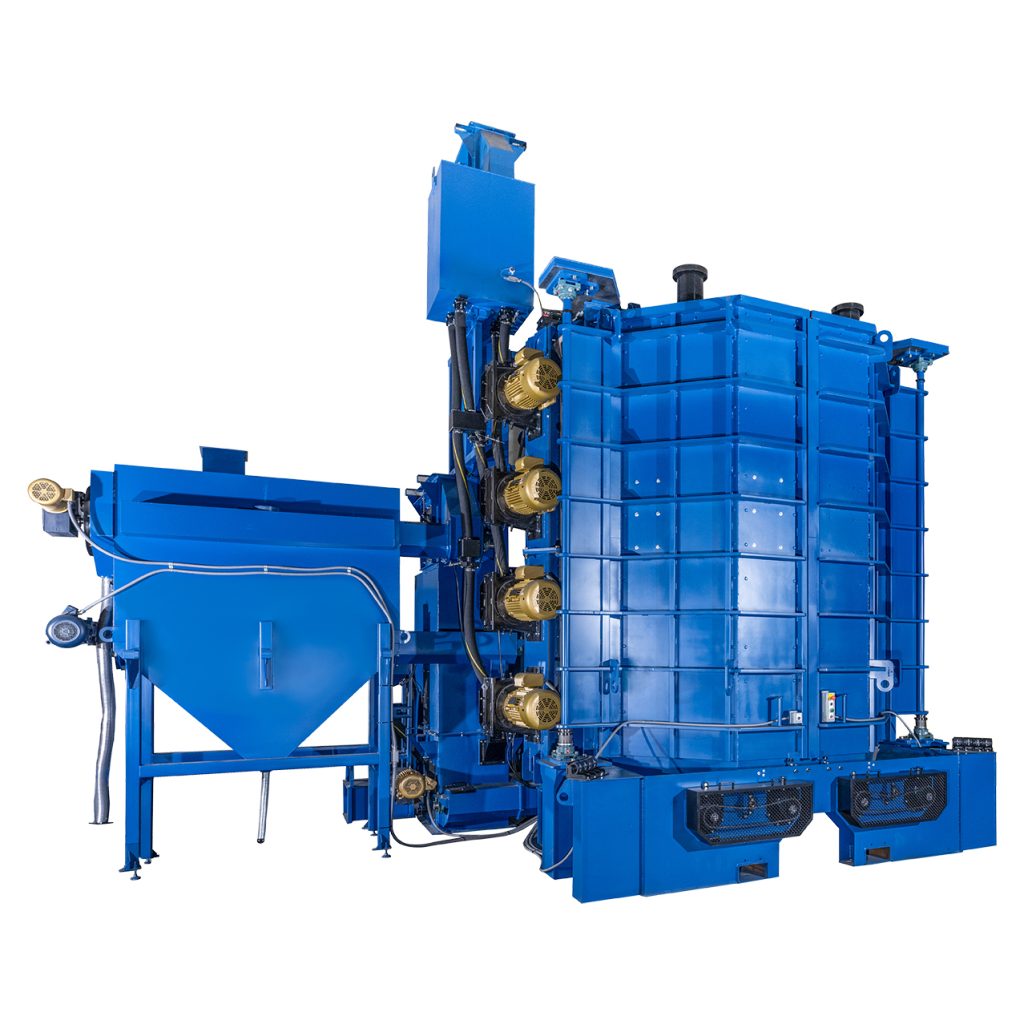

Table Blaster System - large - side

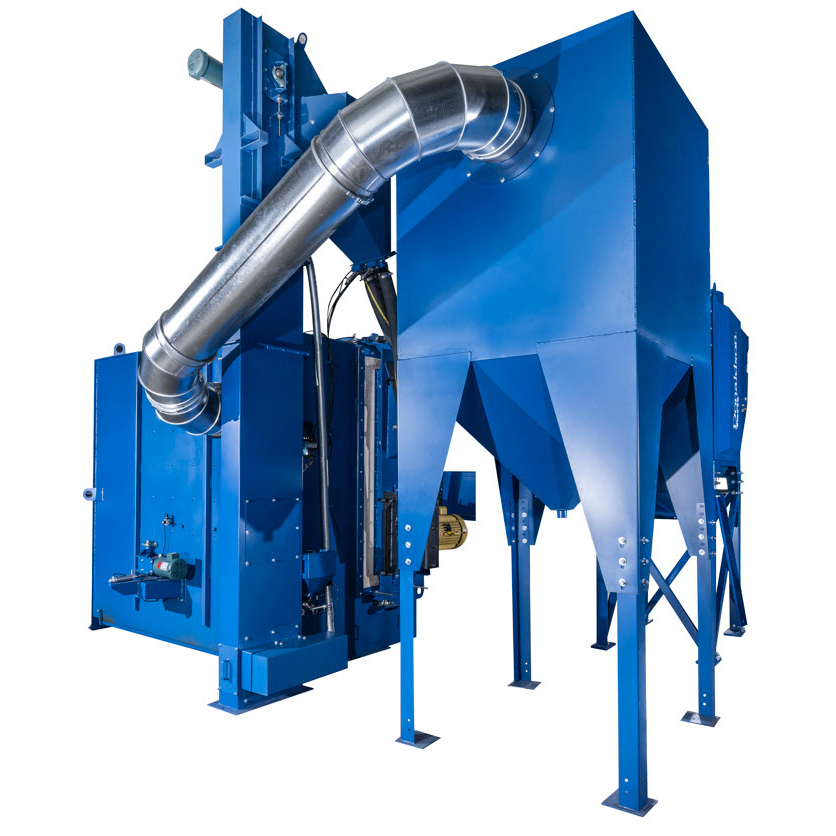

Table Blaster System - large - back collector
Table Blaster System - small - front
Request Information

Features:

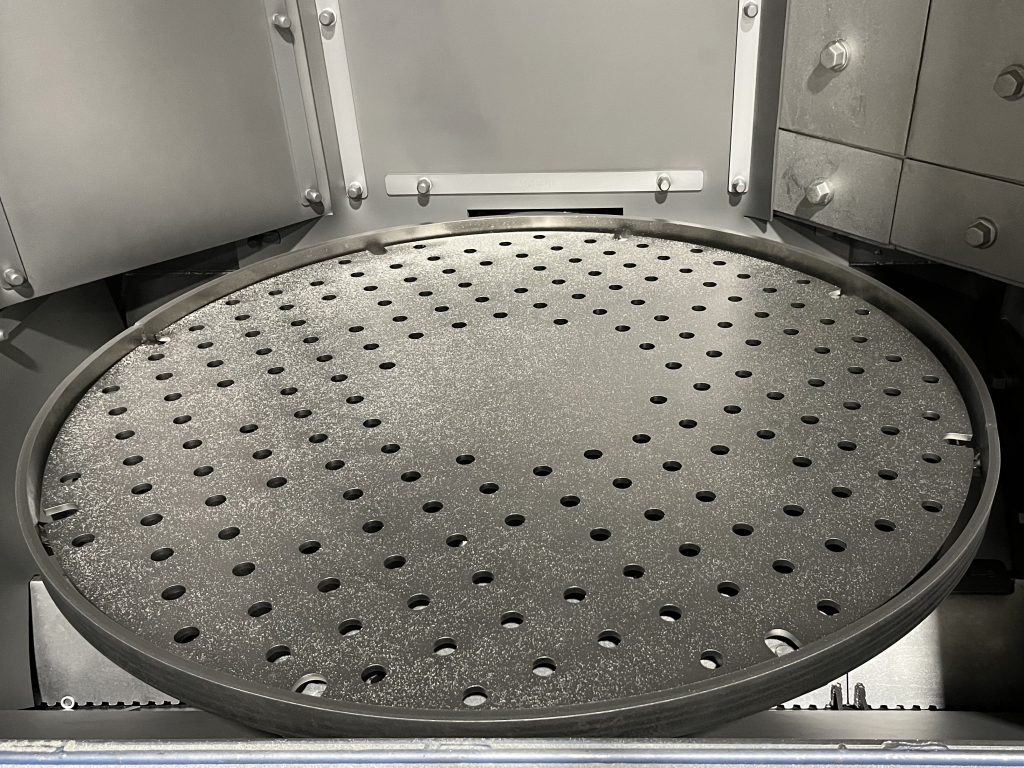

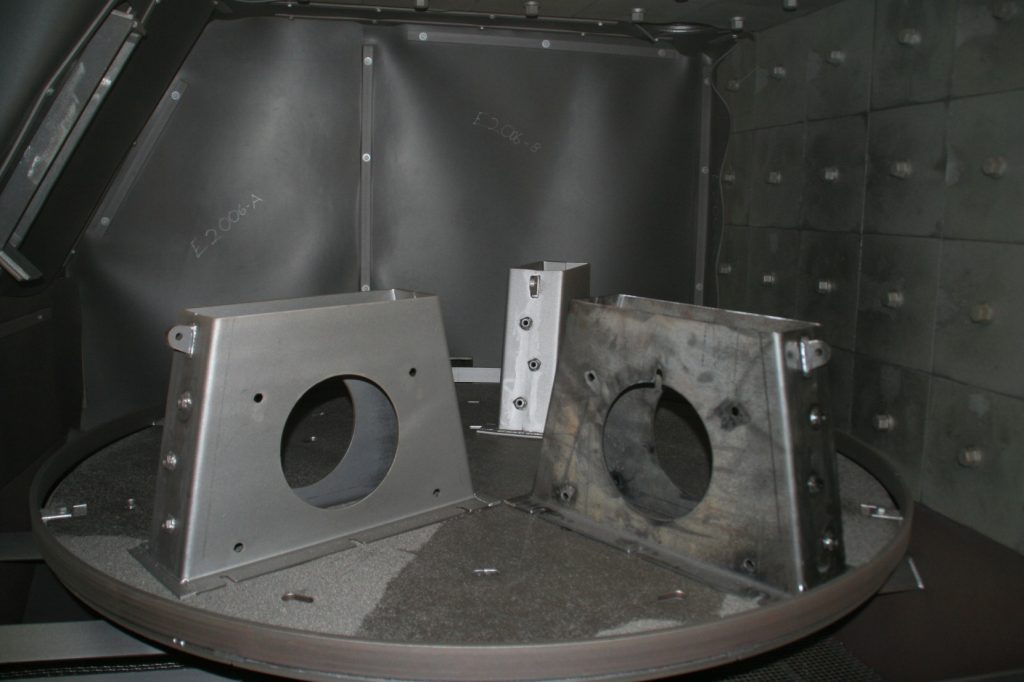

  • These abrasive wheelblast machines use a powered turntable that rotates within the blast envelope to provide 360° exposure.

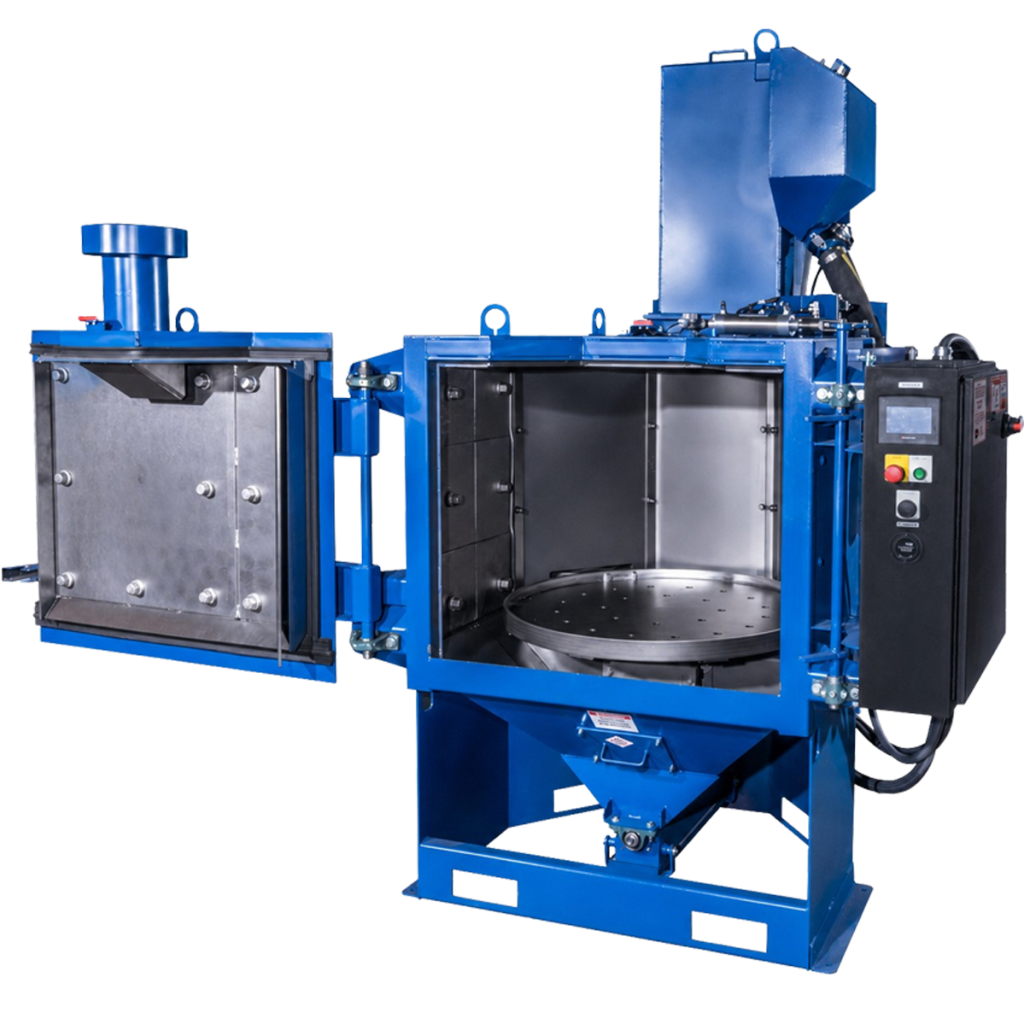

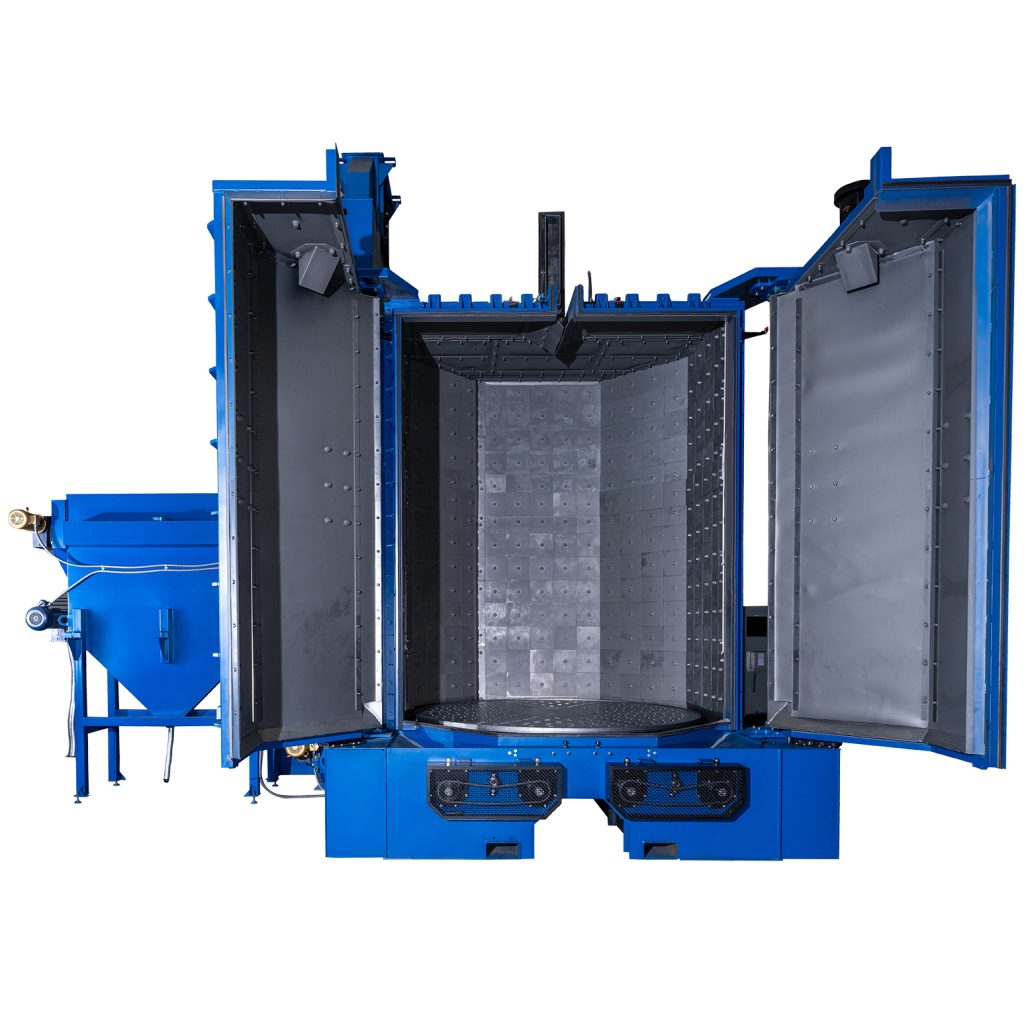

  • The turntable can be swung in and out of the blast enclosure for easy loading and unloading.

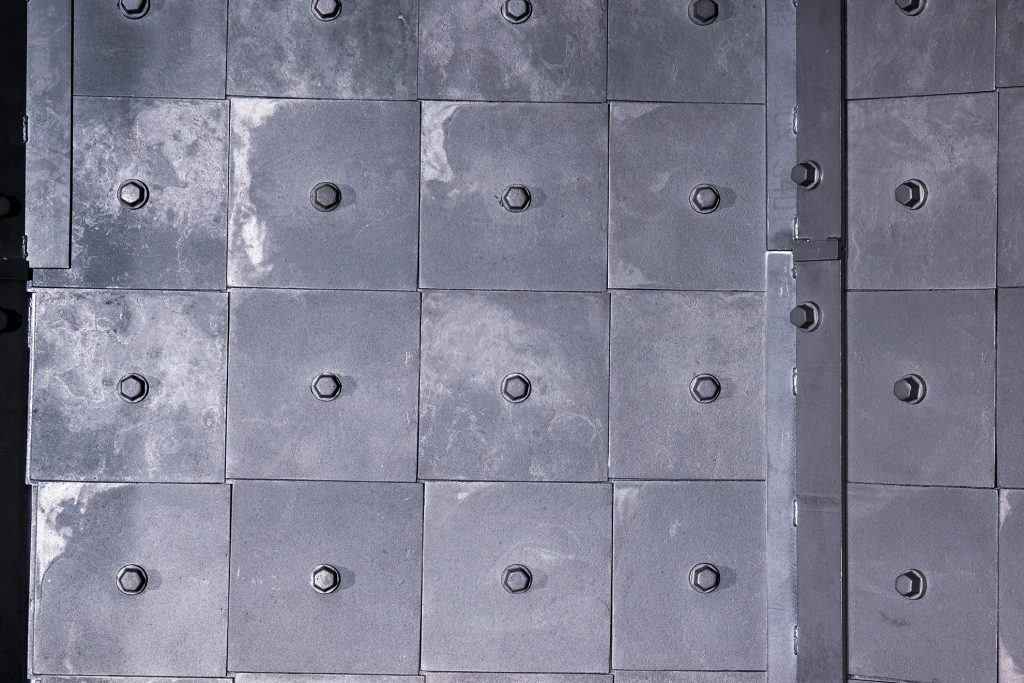

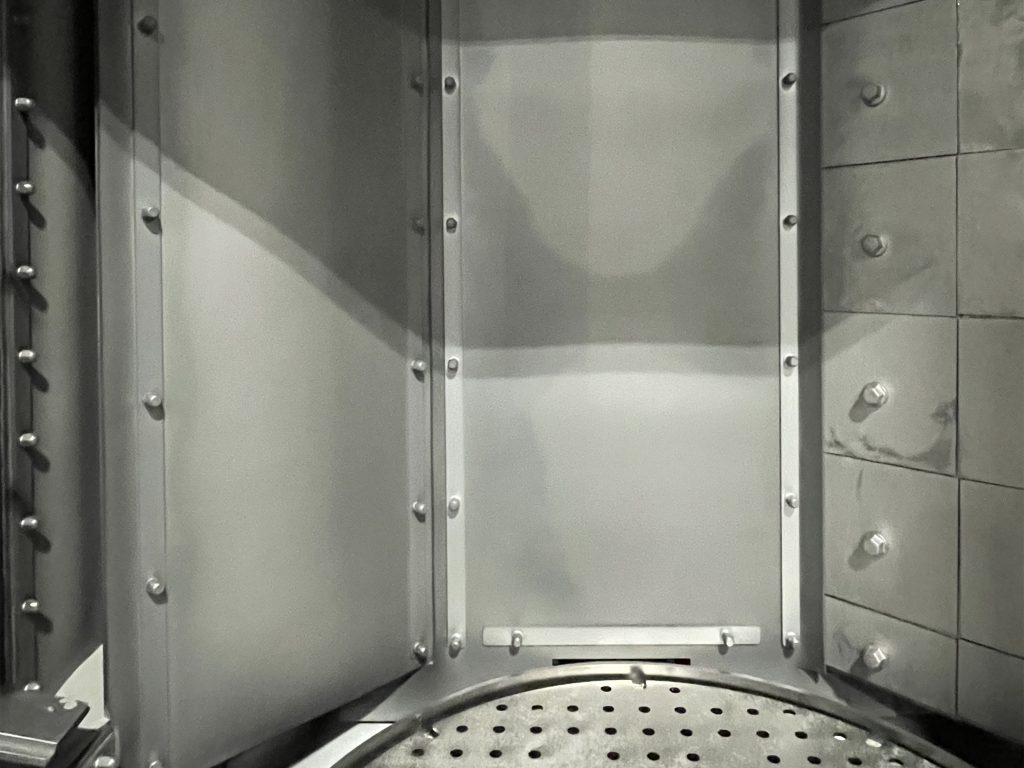

  • Turntables have abrasion-resistant liners.

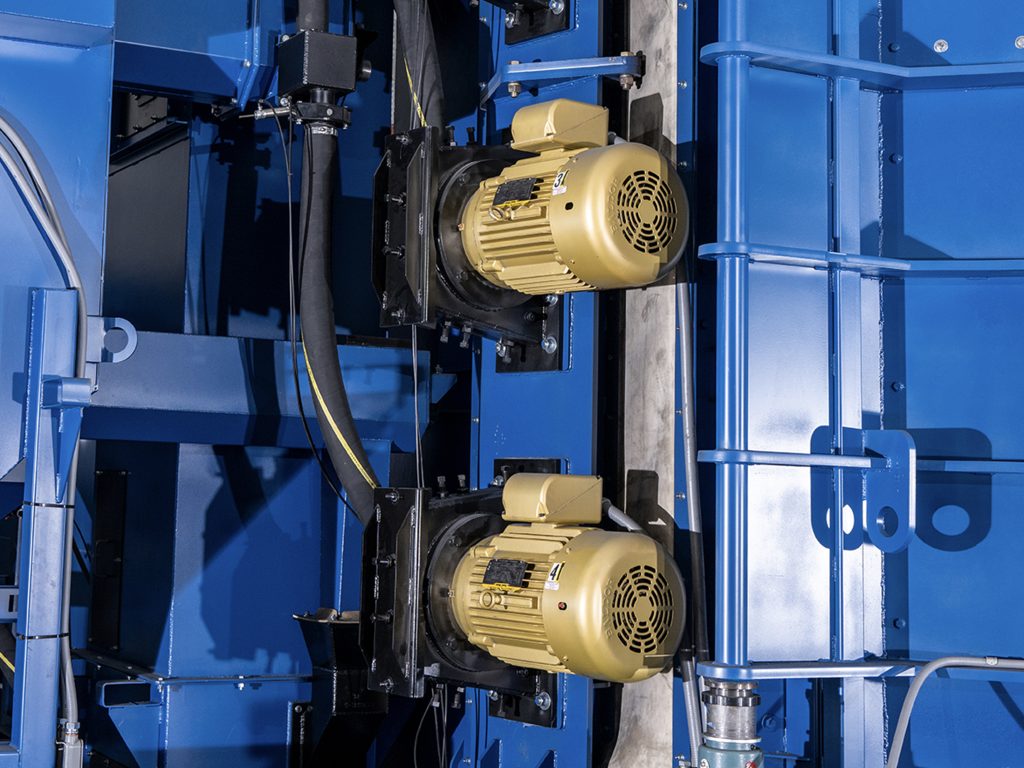

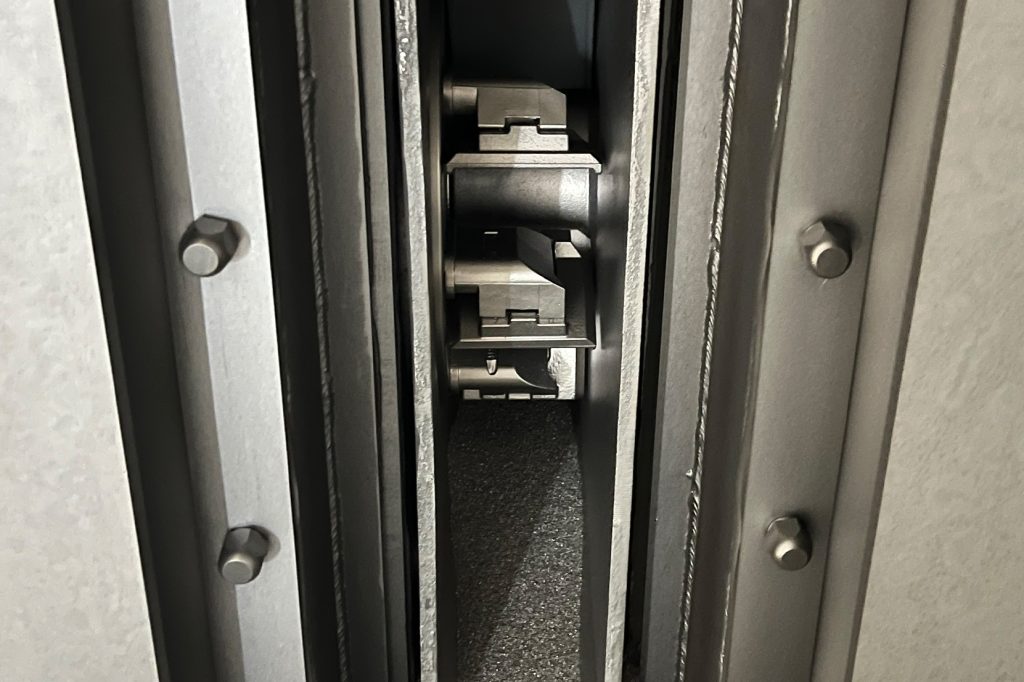

  • Some models feature an oscillating blast wheel to enhance blast coverage.
  • Designed for overhead loading and unloading of heavy parts using a hoist or crane.

Benefits:

  • Versatility and flexibility
  • Suitable for parts ranging from 10 lb gears to heavy fabrications.

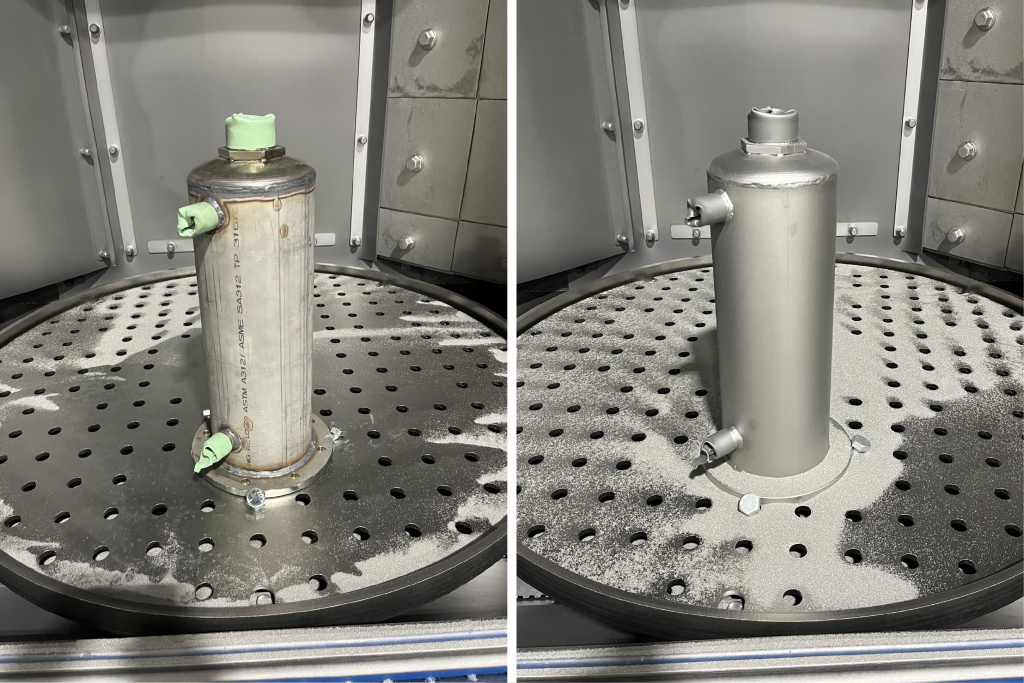

  • Facilitate cleaning, peening, deburring, profiling, finishing, and other surface conditioning tasks.
  • Provide efficient blasting of parts with consistent 360-degree coverage.

Applications: Ferrous and non-ferrous castings | Heat treated parts | Automotive parts | Die Castings | Deflashing plastic | Descaling | Peening | Deburring

ModelWork Load CapacityMaximum Blast Envelope CapacityMedia Charge CapacityDirect-Drive Blast Wheel (HP)Ventilation RequirementAvailable Options

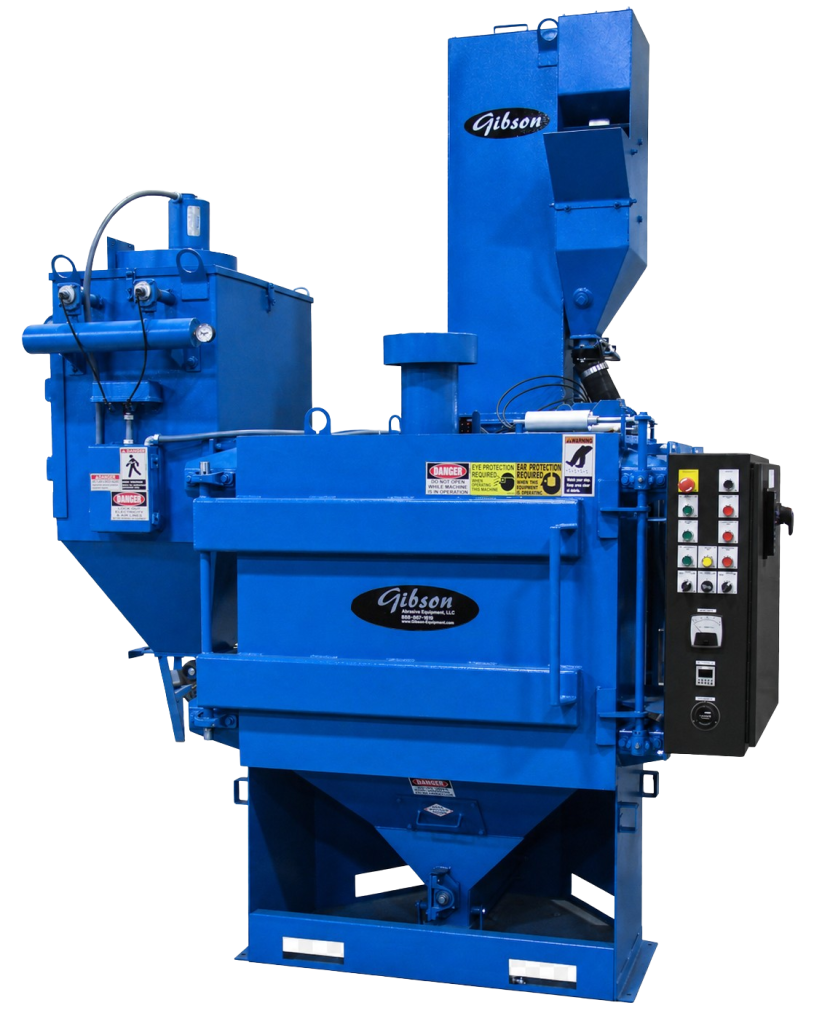

36" Table Blast System1,000 lb36 in Dia. x 19 in400 lb7.5 hp800 CFMDust collectors, Rotary Screen, Variable speed motors
36" Power Table Blast System1,000 lb36 in Dia. x 29 in500 lb5 hp, oscillating500 CFMVariable speed motors | Rotary Screen
48" Table Blast System5,000 lb48 in Dia. x 20 in800 lb15 hp1,200 CFMVariable speed motors | Rotary Screen | Dust collector
48" XT Table Blast System5,000 lb48 in Dia x 60 in800 lb10 hp1,631.8 CFMVariable speed motors | Dust collector

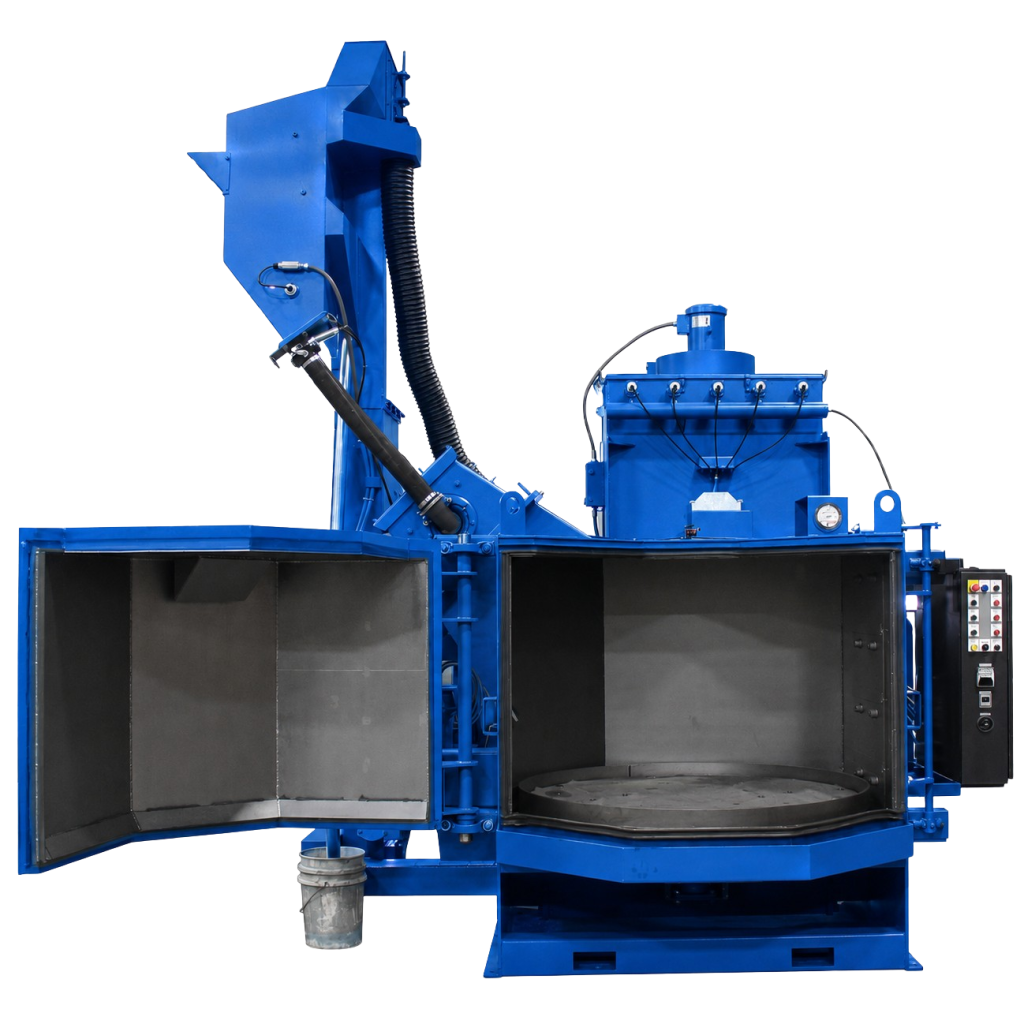

60" Table Blast System5,000 lb60 in Dia. x 37 in3000 lb15 hp2,000 CFMVariable speed motors | Rotary Screen | Dust collector
60" XT Table Blast System5,000 lb60 in Dia. x 60 in3000 lb(2) 7.5 hp, oscillating2,000 CFMVariable speed motors | Rotary Screen | Dust collector
72" Table Blast System6,000 lb72 in Dia. x 37 in3000 lb(1) 20 hp2,000 CFMDust collectors, Rotary Screen, Variable speed motors
72" XT Table Blast System10,000 lb72 in Dia. x 60 in4,300 lb(2) 10 hp, oscillating2,000 CFMVariable speed motors | Rotary Screen | Dust collector
84" XT Table Blast System10,000 lb84 in Dia. x 60 in7,000 lb(2) 15 hp3,000 CFMVariable speed motors | Dust collector | Oscillating Blast Wheels
96" XT Table Blast System10,000 lb96 in Dia. x 60 in8,000 lb(2) 20 hp5,000 CFMVariable speed motors | Dust collector | Oscillating Blast Wheels
120" Table Blast System10,000 lb120 in Dia. x 80 in8,000 lb(2) 20 hp10,000 CFMVariable speed motors | Dust collector | Oscillating Blast Wheels

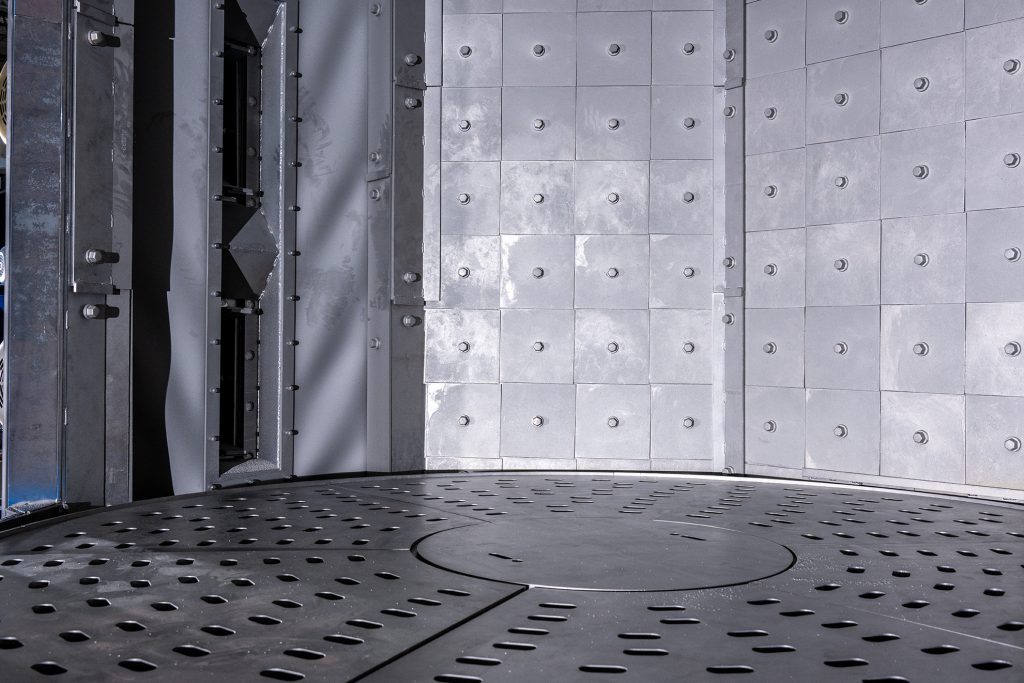

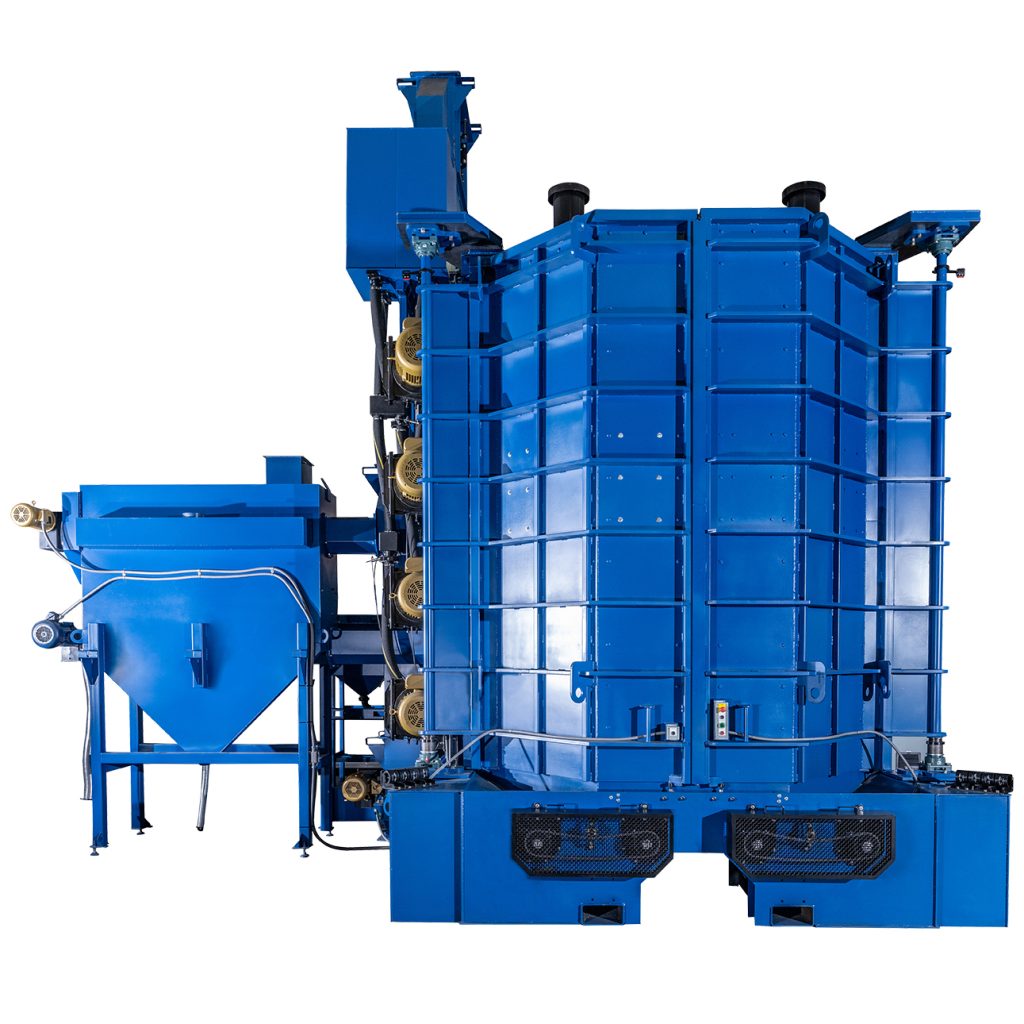

120" XT Table Blast System10,000 lb120 in Dia. x 144 in10,000 lb(4) 20 hp12,000 CFMVariable speed motors | Dust collector | Oscillating Blast Wheels
